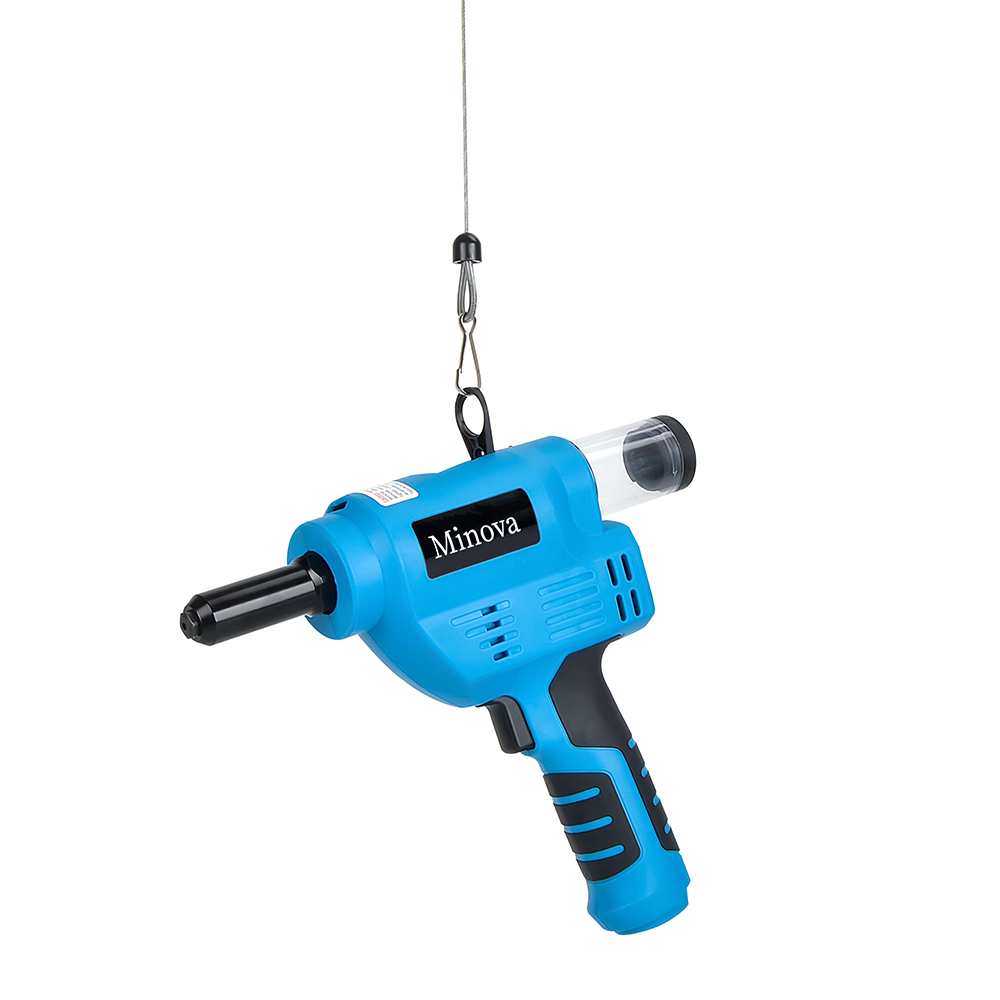

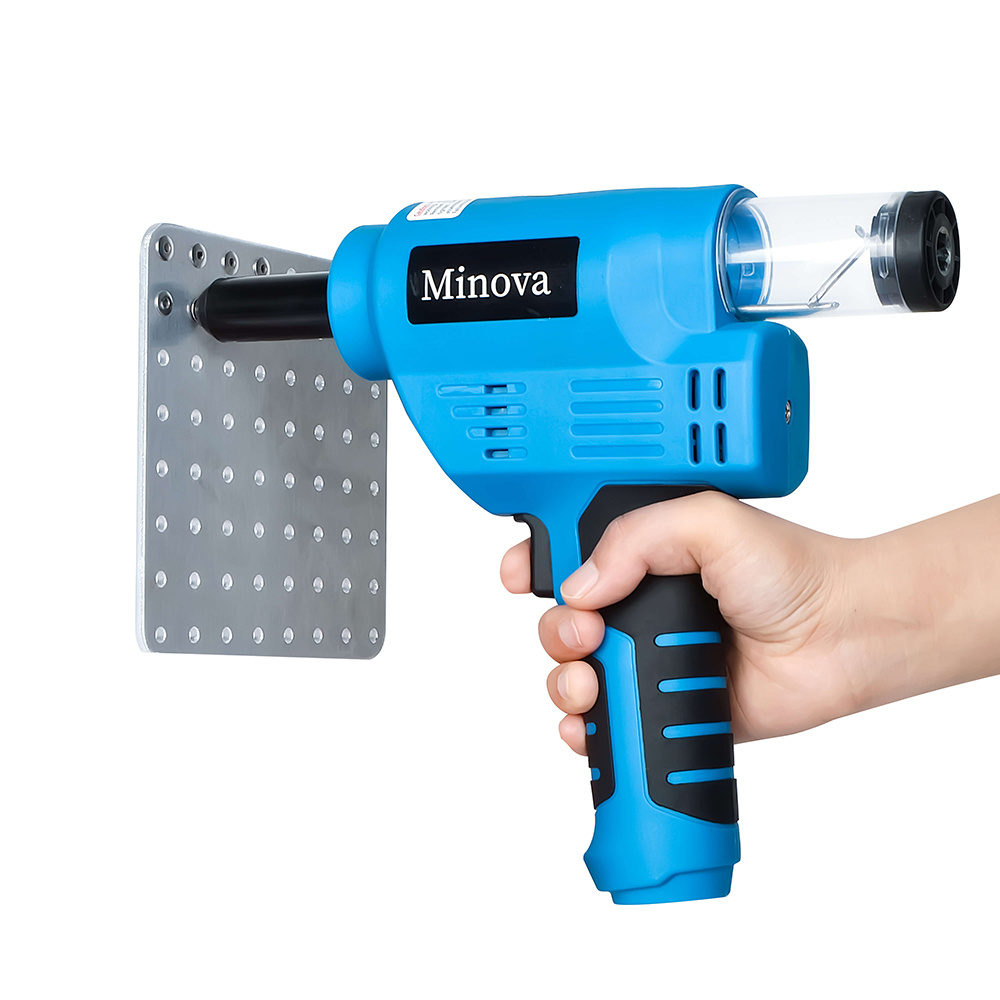

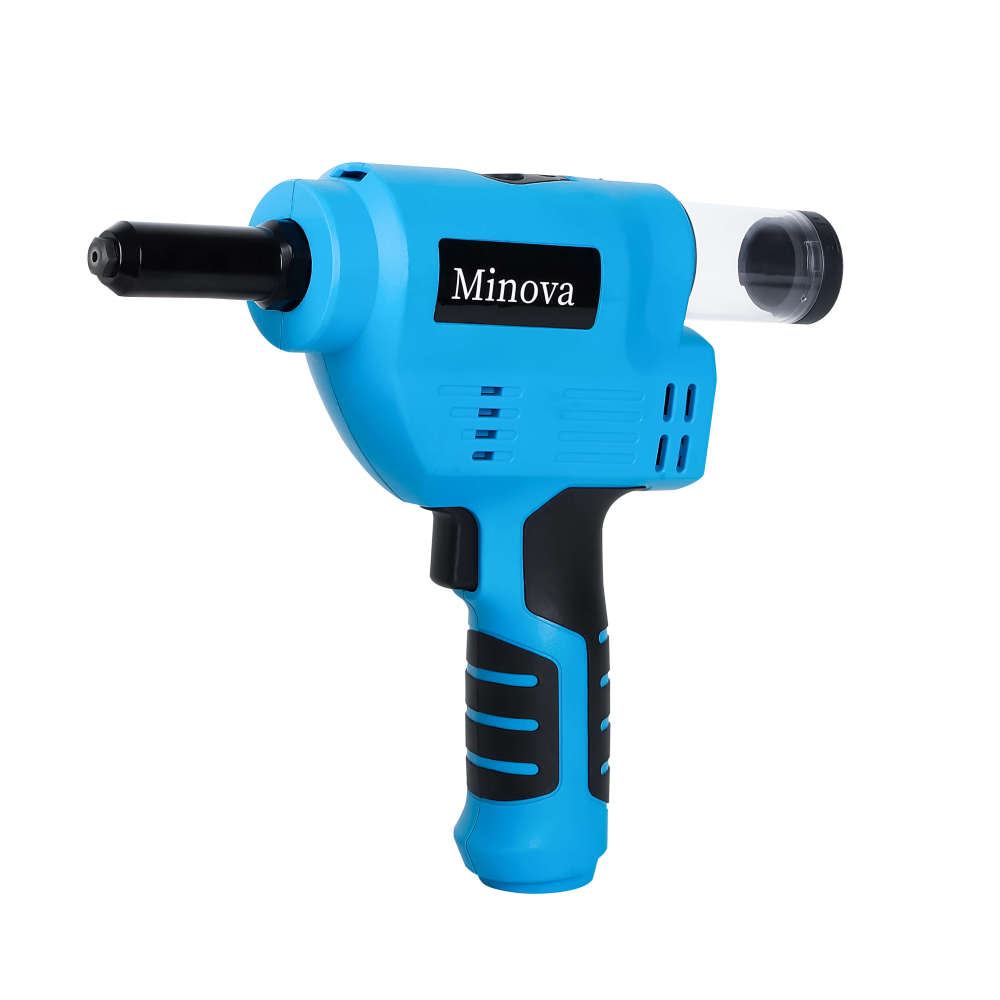

Minova KD-02D Cordless Rivet Gun Rivet Tool
Feature :
1. Out-of-the-box: use immediately
2 . All material blinds from 2.4mm (3/32'')to 5.0mm(3/16").

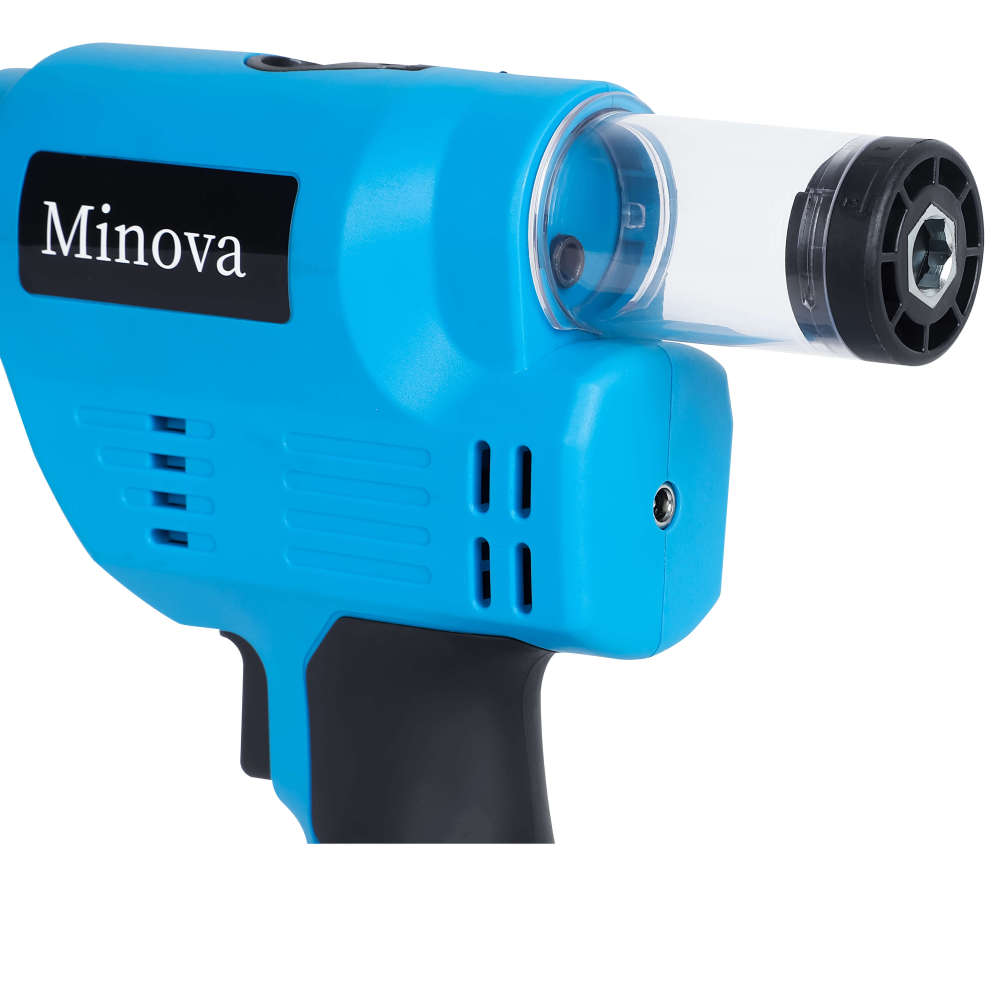

3 . Mandrel Collector with hex wrench: Change nosepieces conveniently and keep the job site clean.
4.
12 V Lithium battery built-in handle, no need to disassemble.

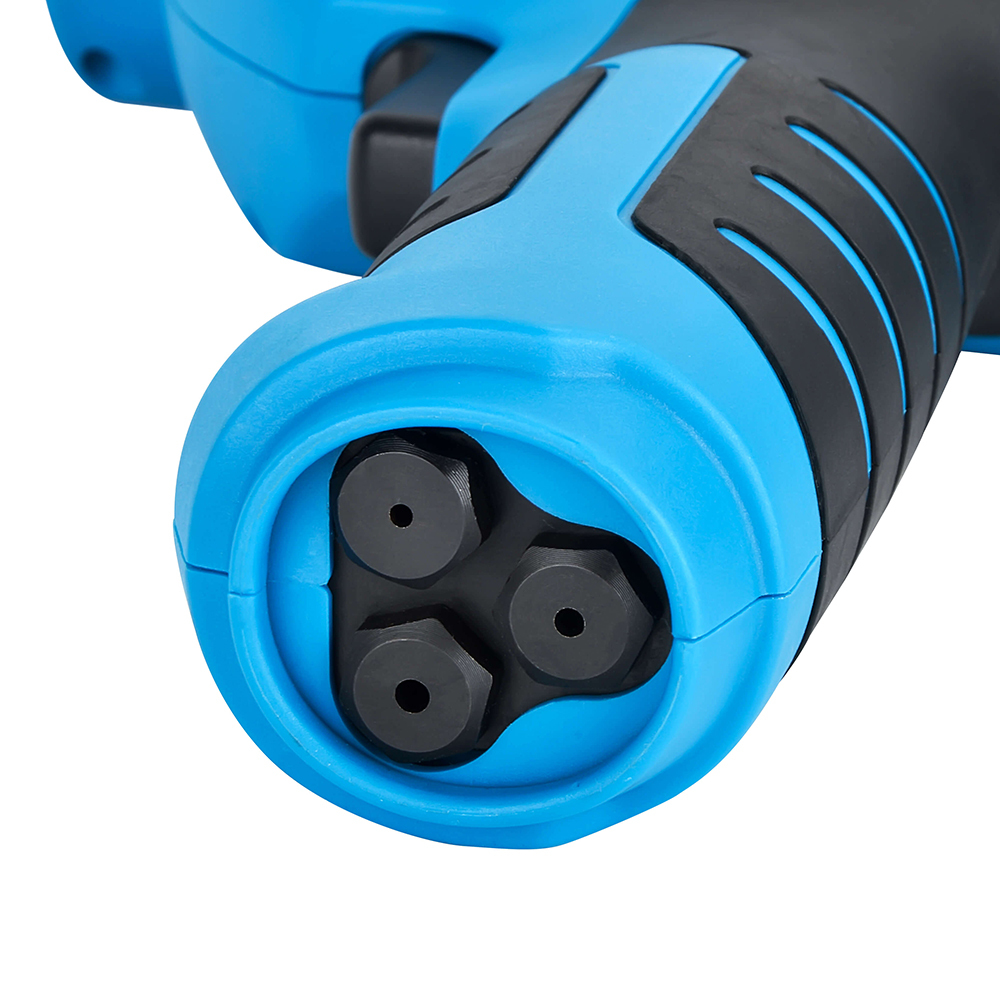

2.4 mm (3/32") - 5.0 mm (3/16") Nose Pieces
(4 Normal Nose Pieces,3 Anti-off Nose Pieces)
Cordless no tube limit can work anywhere
Lithium battery build-in
Suitable for DIY working, Affordable
Material suitable
| PROCESSING BLIND RIVETS KD-02D |
| METRIC |
2.4mm |
3.2mm |
4.0mm |
5.0mm |
| INCH |
3/32" |
1/8" |
5/32" |
3/16” |
| Aluminum |
✓ |
✓ |
✓ |
✓ |
| Steel |
✓ |
✓ |
✓ |
✓ |
| Stainless steel A2 |
✓ |
✓ |
✓ |
✓ |
| Copper |
✓ |
✓ |
✓ |
✓ |
Riveting Data
2.4 mm(3/32''): Approx.1250 PCS/ Battery Charge
3.2 mm(1/8''): Approx.850 PCS/ Battery Charge
4.0 mm(5/32"): Approx.650 PCS/ Battery Charge
5.0 mm(3/16"): Approx.500 PCS/ Battery Charge
Specification
| Brand |
MINOVA |
| Model |
KD-02D |
| Weight (battery inside ) |
1.68kg |
| Full Force |
12KN |
| Stroke |
25mm(1'') |
| Voltage |
18V |
| Battery |
2Ah |

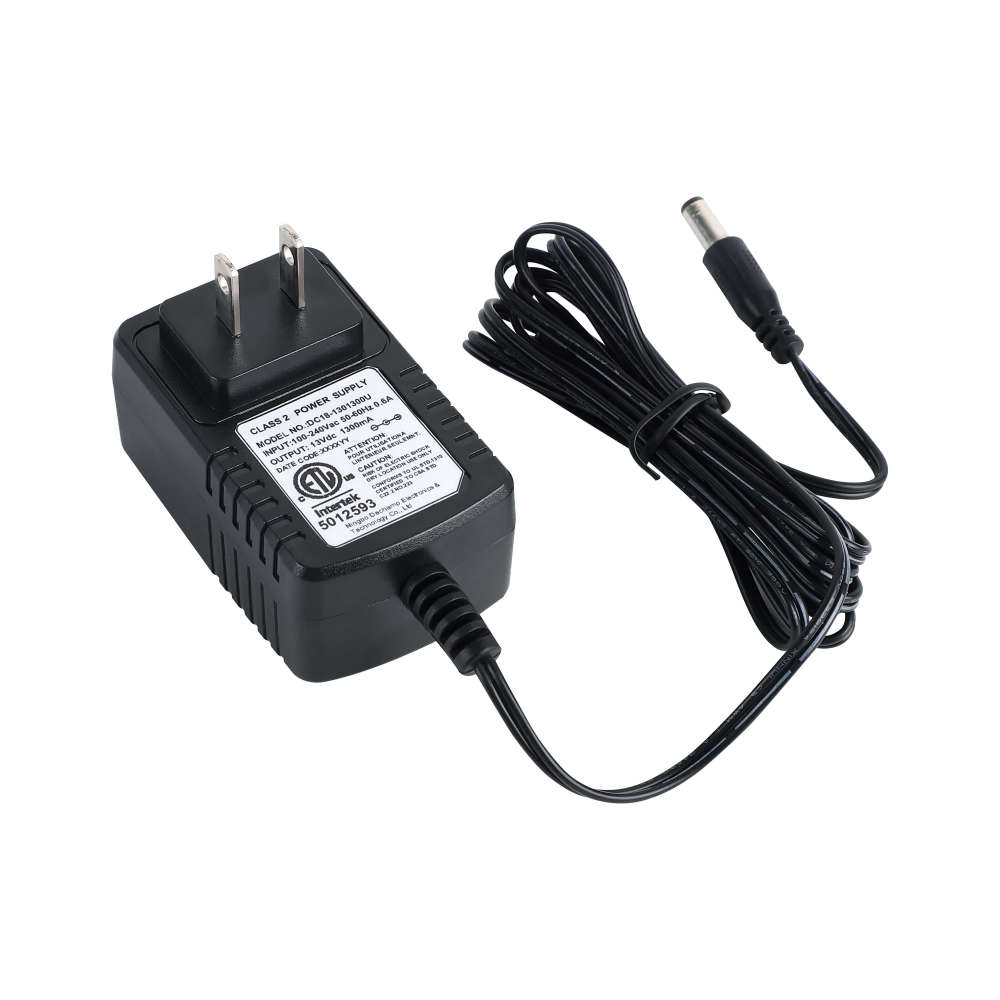

| AC Charger |
100-240VAC /50-60Hz |
| Charging time |
120 mins |
| Nozzle Spec. |
2.4mm（3/32'')/3.2mm(1/8'')/ 4.0mm(5/32‘’）/ 5.0mm（3/16“） |
| Tool Warranty |
1 Year (Tool), 3 Years (Battery) |
DELIVERY LIST
| Body (blue shell/Blue U blue) |
| Anti-riveting mouth 3.2mm(1/8'')/ 4.0mm(5/32‘’）/ 5.0mm（3/16“） |
| Ordinary rivets 2.4mm（3/32'')/3.2mm(1/8'')/ 4.0mm(5/32‘’）/ 5.0mm（3/16“） |
| A pair of spare claws are placed in the rivet box |
| 3.2mm & 4.0mmeach packed in 10 rivets kraft paper bags |
| Ordinary charging cable |
| Small nail barrel with a wrench |
| Clamshell carton + paper-lined packaging |
| Warning signs |
| Manual |
Documents
MINOVA KD-02D&KD-02DT Cordless Rivet Gun Instruction
