Minova KD-02DT USB C Charge DC Blind Riveter
Feature :

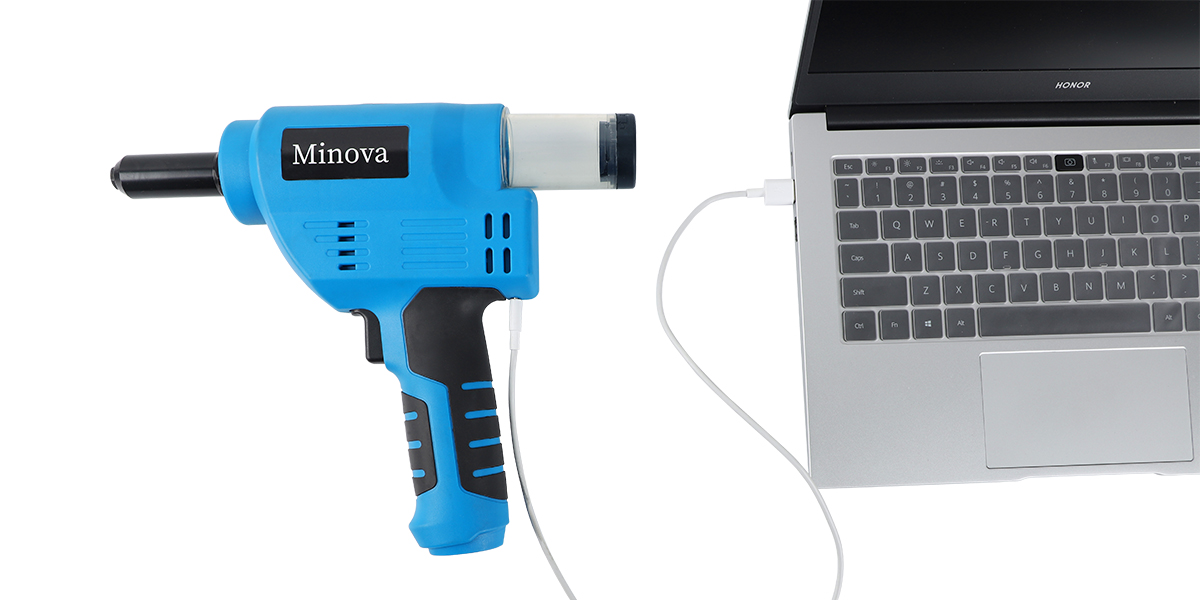

1. Easy riveting tool, charged Via USB port by a mobile phone charger.

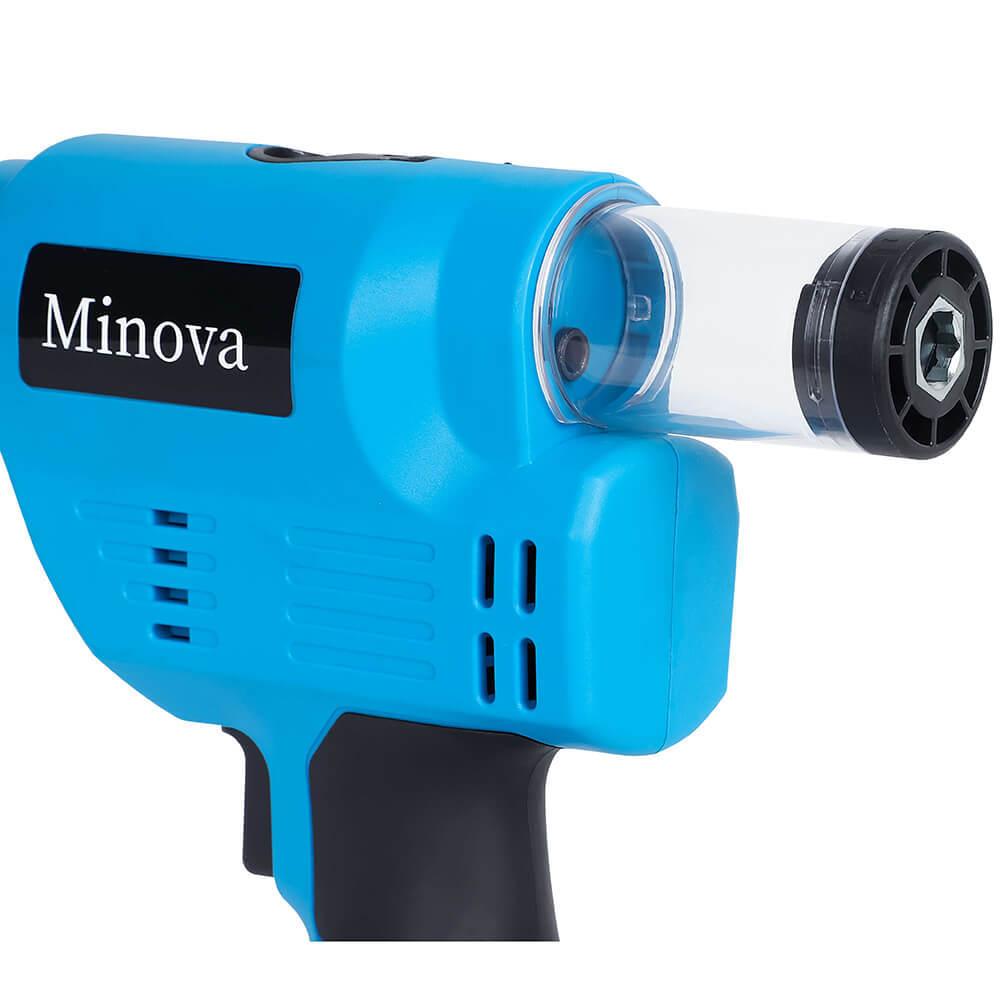

2 . Mandrel collector with hex wrench: change nosepieces conveniently and keep the job site clean.

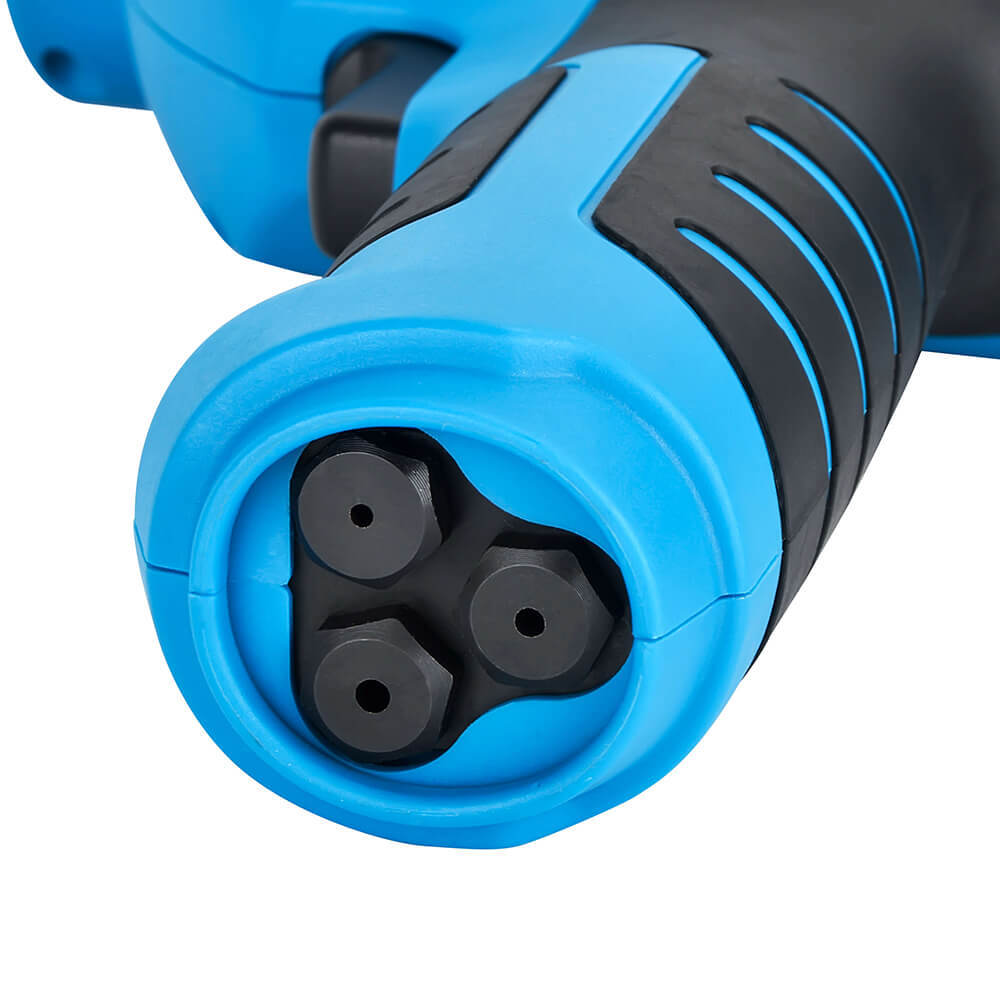

3. All nosepieces can be noted at the bottom of the handle.
4 . Lightweight and portable

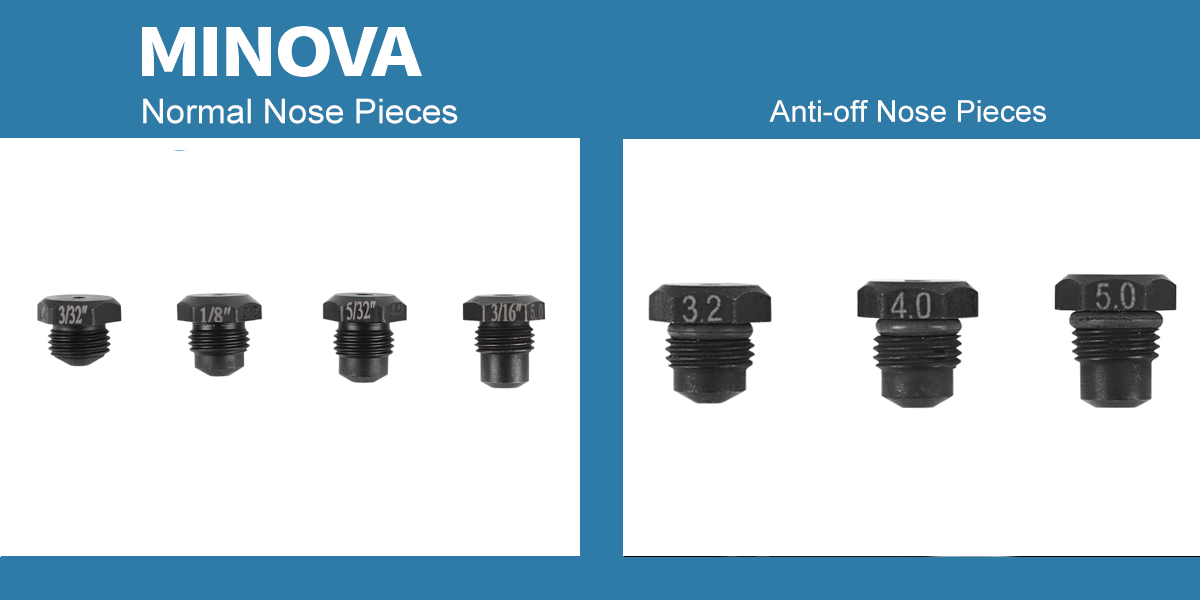

2.4 mm (3/32") - 5.0 mm (3/16") Nose Pieces
(4 Normal Nose Pieces,3 Anti-off Nose Pieces)

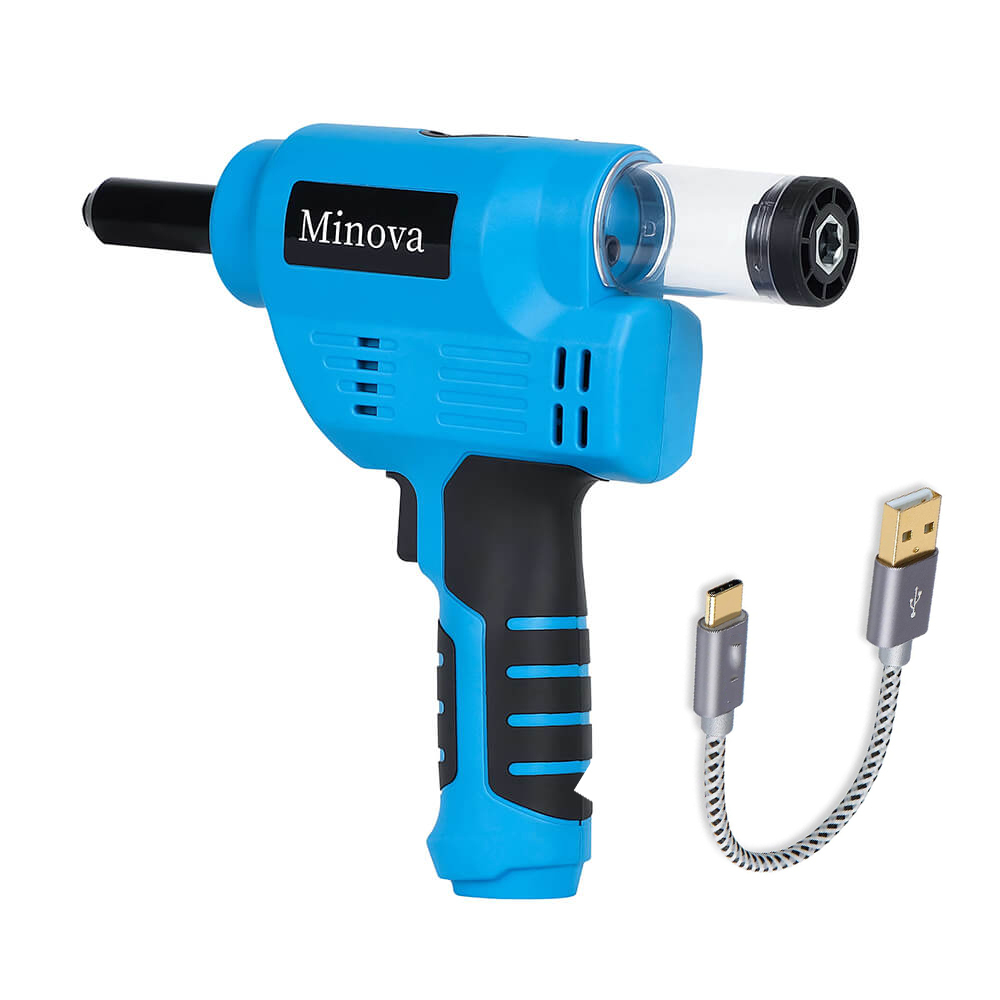

USB Type C charges anywhere
Lithium battery build-in
Suitable for DIY working, Affordable
Suitable material
| PROCESSING BLIND RIVETS KD-02DT |
| METRIC |
2.4mm |
3.2mm |
4.0mm |
5.0mm |
| INCH |
3/32" |
1/8" |
5/32" |
3/16” |
| Aluminum |
✓ |
✓ |
✓ |
✓ |
| Steel |
✓ |
✓ |
✓ |
✓ |
| Stainless steel A2 |
✓ |
✓ |
✓ |
✓ |
| Copper |
✓ |
✓ |
✓ |
✓ |
Riveting Data(Steel Blind Rivets)
2.4 mm(3/32''): Approx.1250 PCS/ Battery Charge
3.2 mm(1/8''): Approx.850 PCS/ Battery Charge
4.0 mm(5/32''): Approx.650 PCS/ Battery Charge
5.0mm(3/16''): Approx.500 PCS/ Battery Charge
Specification
| Brand |
MINOVA |
| Model |
KD-02DT |
| Full Force: |
12kN |
| Stroke : |
25mm(1'') |
| Weight (battery inside ) : |
1.68kg(3.69lb) |
| Battery : |
12V/2.0 Ah |
| Charger : |
100-240VAC /50-60Hz |
| Charging time : |
240mins |
| Nozzle Spec. |
2.4mm(3/32'')/3.2mm(1/8'')/ 4.0mm(5/32'')/ 5.0 mm(3/16'') |
Delivery List
| KD-02DT Body (blue shell/Blue U blue) |
| Anti-riveting mouth 3.2mm(1/8'')/ 4.0mm(5/32'')/ 5.0 mm(3/16'') |
| Ordinary rivets 2.4mm(3/32'')/3.2mm(1/8'')/ 4.0mm(5/32'')/ 5.0 mm(3/16'') |
| A pair of spare claws are placed in the rivet box |
| 3.2 & 4.0 each packed in 10 rivet kraft paper bags |
| TYPE-C charging cable |
| Small nail barrel with the wrench |
| Clamshell carton + paper-lined packaging |
| warning signs |
| manual |
Documents
MINOVA KD-02DT Instruction
